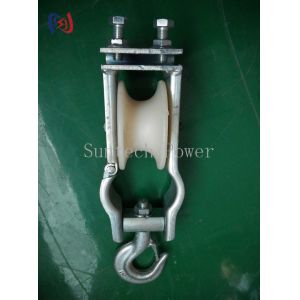

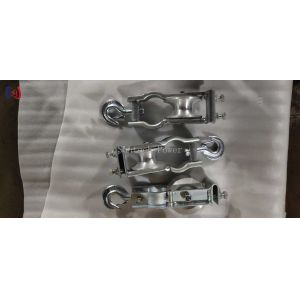

Nylon Sheave Stringing Blocks Conductor Transmission Stringing Blocks
Application:
SHD Series Single Nylon Sheave Stringing Block Pulley Aerial Cable Blocks
The block is used for conductor stringing operation. It could be used for suspension with the hook fitting, or used on cross arms.This stringing pulley block has the aluminum sheave and nylon sheave, the rated load is from 5KN to 20KN, very light weight, it from1.9kg to 2.5kg, we have the standard sizes as above.
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
Nylon Sheave Stringing Pulley Block with Hook Data
| Item number | Model | Outside diameter ×width (mm) | Rated load (kN) | Weight (kg) | Remark |
| 10261 | SHC-80×50 | Φ80×50 | 5 | 1.9 | Aluminum sheave |
| 10262 | SHC-120×30 | Φ120×30 | 5 | 2.1 | |
| 10263 | SHC-160×40 | Φ160×40 | 10 | 2.5 | |
| 10264 | SHC-120×58 | Φ120×58 | 20 | 3.5 | |
| 10271 | SHCN-80×50 | Φ80×50 | 5 | 1.4 | Nylon sheave |
| 10272 | SHCN-120×30 | Φ120×30 | 5 | 1.6 | |
| 10273 | SHCN-160×40 | Φ160×40 | 10 | 2 | |
| 10274 | SHCN-120×58 | Φ120×58 | 20 | 2.5 |
